Description

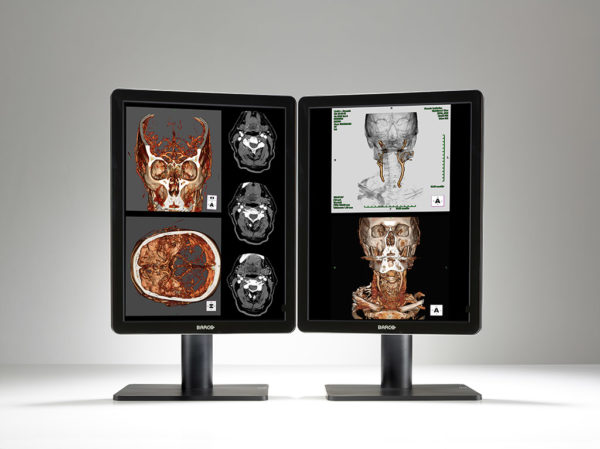

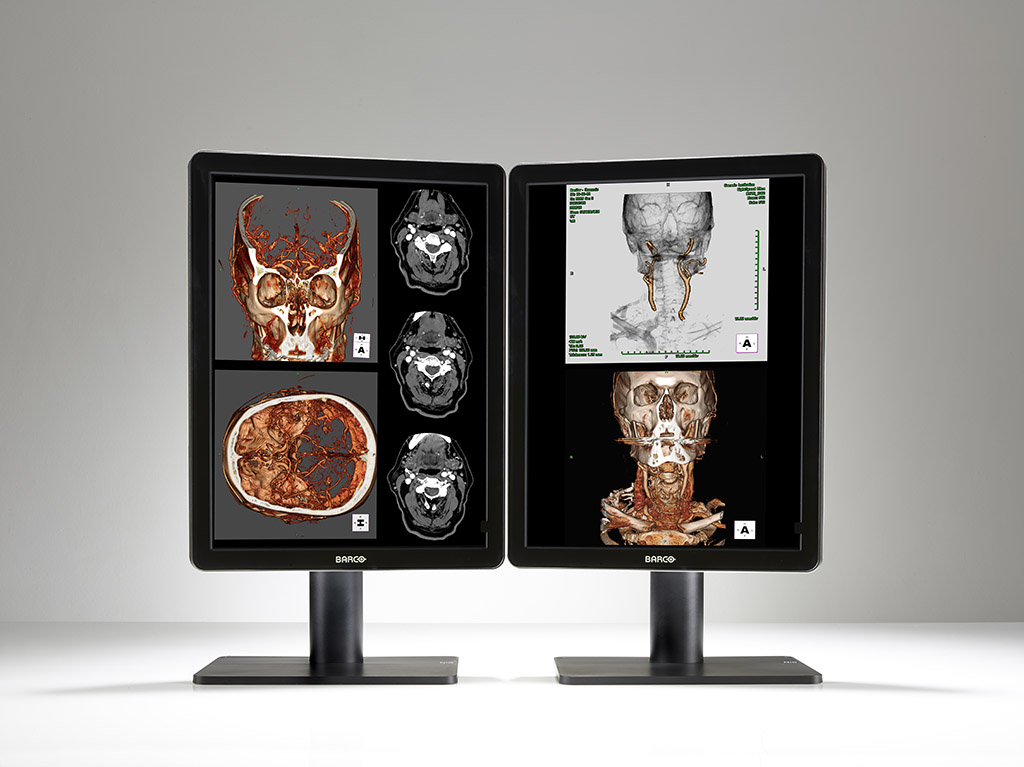

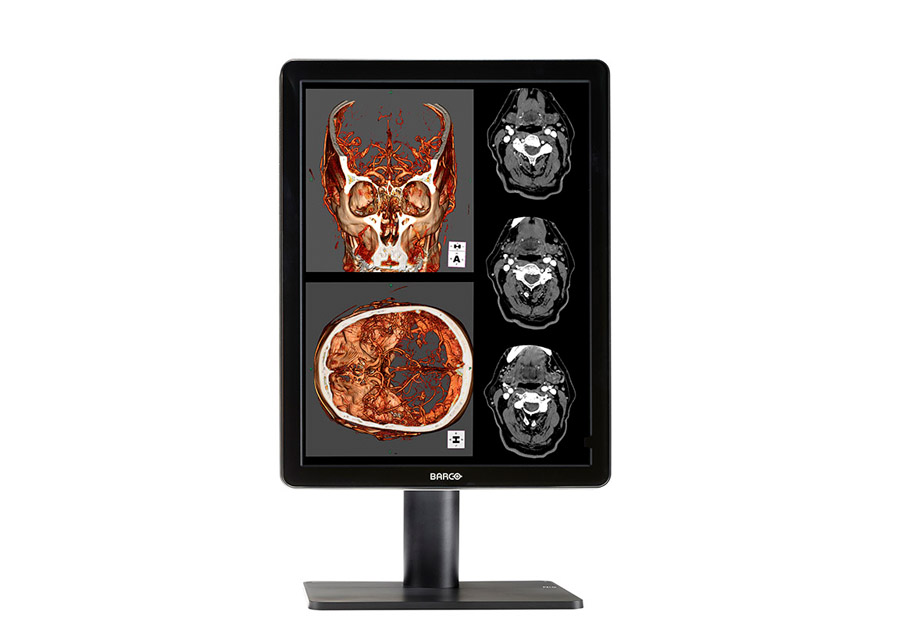

Nio Color 2MP LED is a 2-megapixel LED-backlit color display system that delivers excellent image quality for confident diagnosics. The Nio Color 2MP LED is a powerful imaging solution for a variety of applications including 3D-PACS, 3D echocardiography, ultrasound diagnostics, orthopedic imaging, computed diagnostics (CD), fusion imaging, medical radiology, and positron emission tomography (PET).

Faithful color reproduction
Nio Color 2MP LED with bright LED-backlit provides excellent brightness and more grayscale for faster detection of fine details. The unique front panel sensor ensures you always see stable and accurate images for confident diagnosiсs.

Image quality check on demand
The Nio Color 2MP LED front panel sensor, which works closely with Barco’s QAWeb Enterprise web-based solution for automatic quality control and on-demand calibration, ensures that magnificent DICOM images are displayed.

Excellent investment
Nio Color 2MP LED is a leader in both power consumption and image brightness. Consuming less power, the monitor generates less heat and requires less cooling, resulting in lower maintenance and operating costs. In addition, the LED-backlit ensures a long lifetime even at high brightness, providing an excellent return on your investment.
Nio Color 2MP LED can be supplied with or without a cover.

Particular qualities
High-brightness, low-power LED-backlit
Accurate color and grayscale reproduction
Front panel sensor and QAWeb Enterprise system ensure DICOM compliance
High quality 3D imaging with full 3D, OpenGL and DirectX support

Technical characteristics

• IPS-Pro screen technology
• Active screen size (diagonal) 540 mm (21.3″)
• Active screen size (H x V) 432 x 324 mm (17.0 x 12.8 inches)
• Aspect ratio (H:V) 4:3
• Resolution 2 MP (1600 x 1200)
• Pixel pitch 0.27 mm
• Color rendering Yes
• Viewing angle (horizontal, vertical) 178°
• Contrast ratio (nominal for panel) 1400:1
• Video inputs 1x DVI
• 1x DisplayPort
