Description

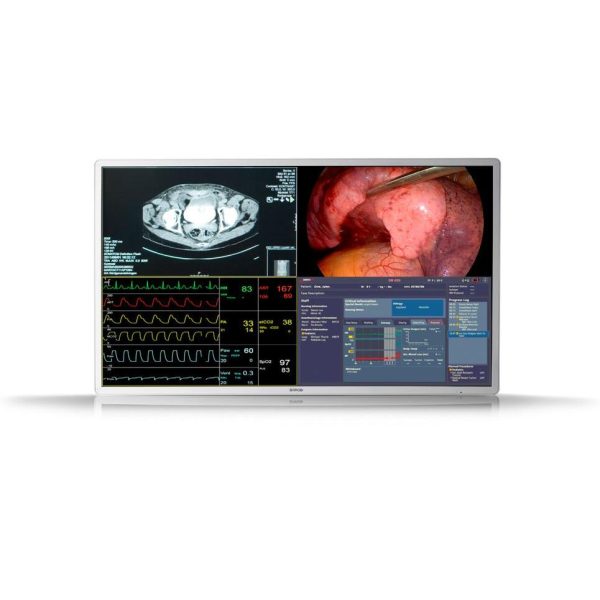

Barco MDSC-8255 is a 55″ surgical display designed for simultaneous viewing of multiple ultra-high resolution images in a digital operating room. With high-quality video playback and a lightweight, slim design, it is the perfect complement to any of the most sophisticated video distribution systems in the OR.

4K UHD resolution on a large screen for visualization of diagnostic images

The MDSC-8255 is a promising choice for referral imaging in the operating room. It can display information previously shown on four 27″ monitors on one large screen with all four images in Full HD. With an optional built-in 4K decoder, it seamlessly integrates with Barco Nexxis video over IP solution.

Wall mounting flexibility

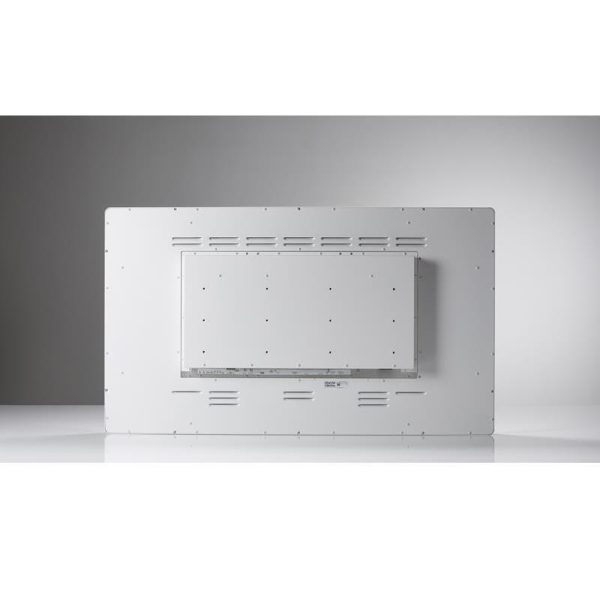

The protective glass front, shallow depth, thin edges and light weight make the MDSC-8255 perfect for wall mounting.

High image quality on large screens
With the MDSC-8255, surgeons get accurate, 100% defect-free, true-to-life, color-calibrated 4K images with excellent depth perception. Advanced video processing features and noise reduction algorithms, along with full 10-bit image processing, make this display the ideal choice for analyzing any diagnostic image in the OR.

Particular qualities
55″ widescreen color LCD with 4x Full HD resolution
Wide viewing angle
Advanced image processing algorithms

Technical characteristics
LCD technology TFT active matrix LCD, IPS
technology, LED backlight
Active screen size (diagonal) 54.6″ (1388 mm)
Active screen size (W x H) 1210 x 640 mm
16:9 aspect ratio
Resolution 3840 x 2160
Pixel pitch 0.315 mm
Color support 1073M (10-bit)
ITU-709, DCI-P3, BT.2020 color calibration
Viewing angle 178° hor. and vert.
Brightness Max: 500 cd/m² (nominal)
At 6500K: 300 cd/m2, brightness stabilized (nom.)
Contrast ratio 1100:1 (max.)
MDSC-8255 LED Video Inputs
4K-UHD input is selectable among:
1 DP 1.1 connector up to 3840 x 2160 @ 25/30 Hz
2 DP 1.1 connectors up to 1920 x 2160 @ 50/60 Hz
1 DP 1.2 MST connector up to 3840 x 2160 @ 50/60 Hz
2 HDMI 2.0 connectors up to 3840 x 2160 @ 50/60 Hz
FHD input (upscaled to UHD):
1 DVI connector
1 3G-SDI connector
MDSC-8255 12G
4K-UHD input is selectable among:
Quad-link 3G-SDI up to 3840 x 2160 @ 50/60Hz
12G-SDI up to 3840 x 2160 @ 50/60Hz
1 DP 1.1 connector up to 3840 x 2160 @ 25/30 Hz
2 DP 1.1 connectors up to 2048 x 2160 @ 50/ 60 Hz
1 DP 1.2 MST connector up to 3840 x 2160 @ 50/60 Hz
2 HDMI 2.0 connectors up to 3840 x 2160 @ 50/60 Hz
FHD input (upscaled to UHD):
1 DVI connector
MDSC-8255 MNA
4K-UHD input is selectable among:
1 DP 1.1 connector up to 3840 x 2160 @ 25/30 Hz
2 DP 1.1 connectors up to 1920 x 2160 @ 50/60 Hz
1 DP 1.2 MST connector up to 3840 x 2160 @ 50/60 Hz
2 fiber optic SFP modules + module for 4K-UHD Nexxis Link
FHD input (upscaled to UHD):
1 DVI connector
1 3G-SDI connector
MDSC-8255 LED & MNA Video Inputs
1x 3G-SDI (input loop)
1x DVI (screen clone scaled down to FHD)
MDSC-8255 12G
2x 12G-SDI (input loop through)
1x DVI (screen clone scaled down to FHD)
