Injection system for MRI
Registration number: РК-МТ-7№010825 dated 15.01.2013

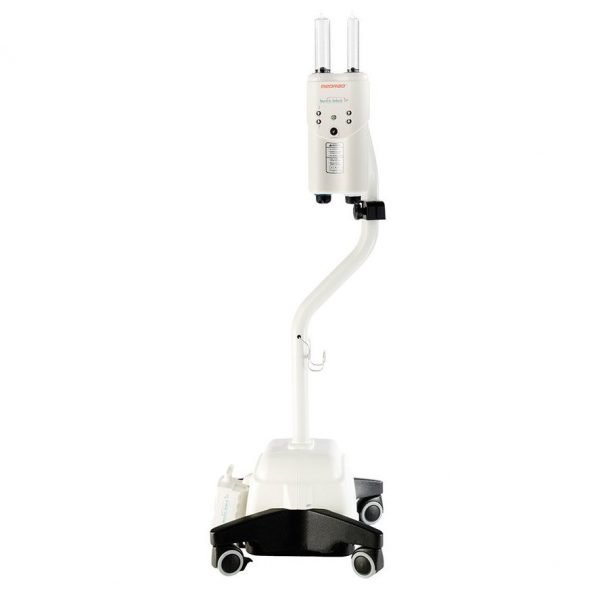

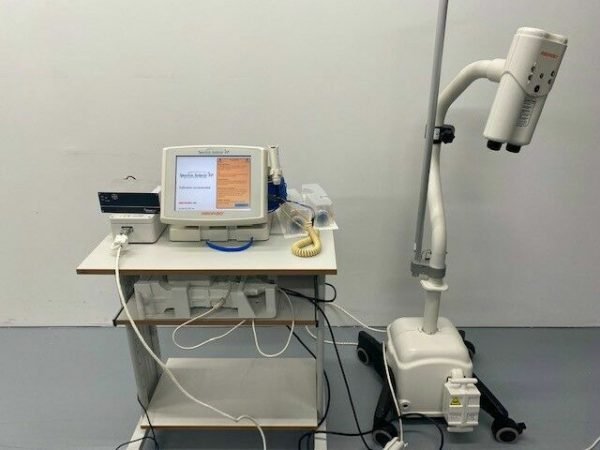

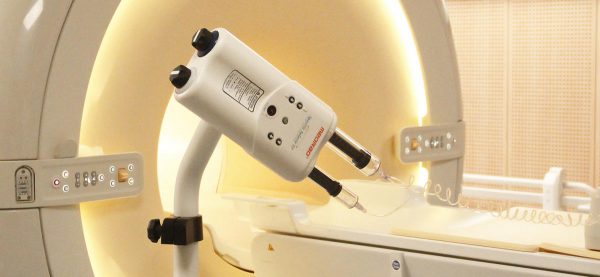

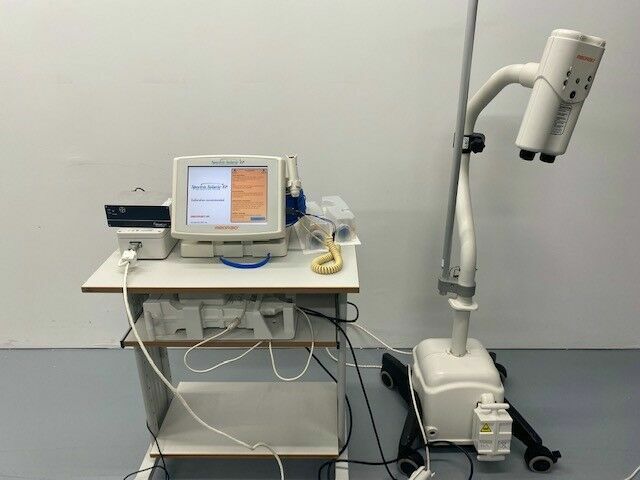

Automatic injector for magnetic resonance imaging.

Easy to operate

• Improved multi-button color touch screen.
• Six user-programmable operating phases provide even more flexibility.
• The independent Keep Vein Open function allows the doctor to devote more time to the patient.
• Larger 115 ml physiological salt solution syringe-flask allows for longer KVO mode and multiple flushing capability.

Syringes-flasks with a capacity of 65 ml for contrast agent and 115 ml for physiological salt solution are part of a single fluid supply system.
The design of low pressure catheters prevents dead spots in the T-connector where loss of contrast agent can occur.
Transparent cylinder design with molded FluidDots ® markings allows you to determine the presence of air in the syringe-flask.

Reliability

• Batteries with extended life and increased capacity.
• Ongoing support from MEDRAD with the highest level of service and unsurpassed product reliability.

Security

• Fiber optic technology provides a direct and reliable connection.
• The equipment is intended for use with any value of the magnetic field induction of the MRI scanner up to 3.0 T inclusive

Capacity:

• Syringe-flask A: From 0.5 ml to maximum syringe capacity: 0.5–31 ml in 0.1 ml increments; in 1 ml increments starting at 31 ml.
• Syringe-flask B: From 1 ml to maximum syringe capacity: in 1 ml increments.
• Flow rate (programmable) 0.01-10 ml/s: 0.01–3.1 ml/s in 0.01 ml/s increments; in the range of 3.1–10 ml/s in 0.1 ml/s increments.
